Goldring - Moving Coil Cartridge Elite Series
Goldring - Moving Coil Cartridge Elite Series
- Brand:Goldring
- Product Code:GL0010M
- Availability:In Stock
-
$1,799.99
Please call 416-251-1111 for more details and in-store offers.

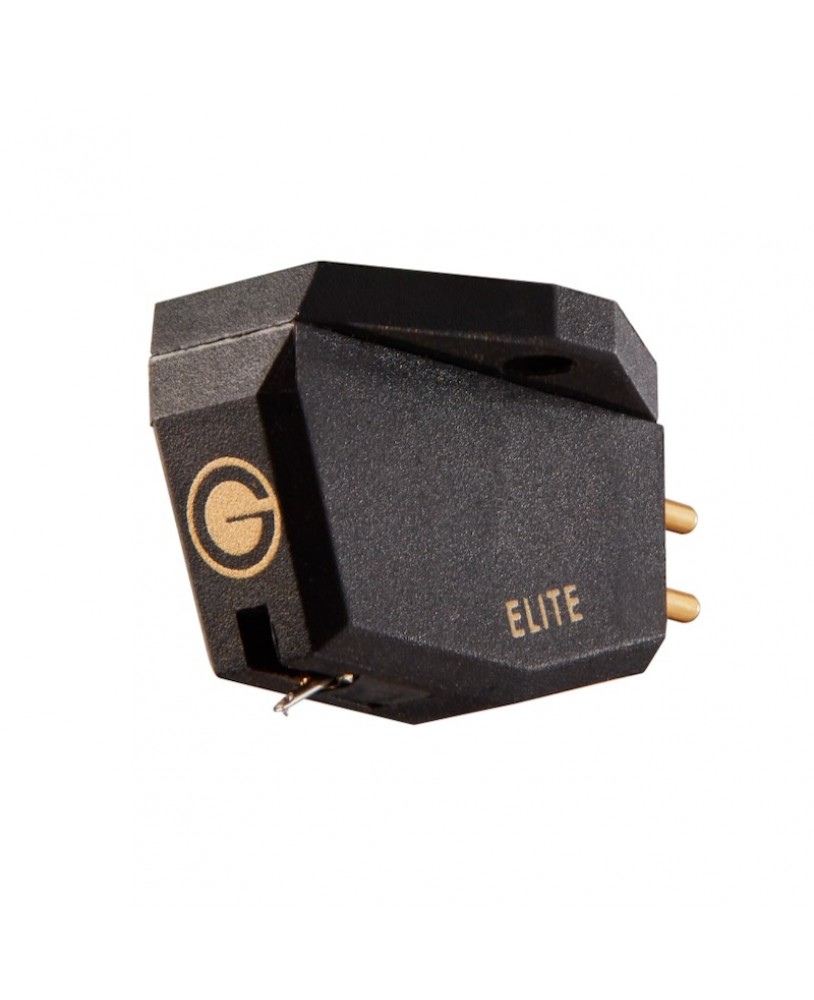

The Elite is an ultra high-performance low-output moving coil cartridge which incorporates all of Goldring’s most time-honoured design features. These include advanced magnetic circuitry with neodymium magnet and an ultra-rigid Pocan® body. The Elite incorporates a Gyger S line-contact nude diamond stylus, providing maximum groove information retrieval and an outstandingly smooth and extended frequency response. The Swedish iron armature is hand-wound with pure silver wire which provides much higher definition than is found in standard record cartridge construction.
The Elite uses a nude, natural-diamond stylus with a Gyger S profile. This is a revolutionary, patented, line contact design which is shaped to more closely resemble the record cutting head than any previous type. It features a substantially flat frontal area and a triangular trailing section with the contact radii being at opposite ends of the front edge. These radii are necessarily larger than that of the cutting head but still small enough for the playback of quadraphonic recordings, at a minute 6 microns. The stylus profile is the main factor governing overall sound quality in a cartridge and the line-contact shape of the Gyger S allows the Elite to trace the smallest groove detail with complete fidelity. Mid-range tonality is incredibly accurate and precise with high frequency sibilance banished.
The Elite uses a neodymium (NdFeB), rare-earth, permanent magnet; the strongest type commercially available. This gives us the opportunity to shorten the magnetic circuit in the cartridge and still achieve the required field strength in the pole shoe gap. In this way the overall mass of the cartridge has been reduced to help improve trackability and make it compatible with a wider range of tonearms.
- Frequency Response: 20 Hz – 30 kHz +/- 2 dB
- Channel Balance: Within 1 dB @ 1kHz
- Channel Separation: Better Than 25 dB @ 1 kHz
- Sensitivity:0.5 mV +/- 1 dB @ 1 kHz
- Static Compliance: 18 Millimetres / N
- Vertical Tracking Angle: 20°
- Stylus Radius: Gyger S
- Stylus Type: Non Replaceable
- Equivalent Tip Mass: 0.35 Milligrams
- Load Resistance: 100 Ω
- Load Capacitance: 100-500 pF
- Internal Inductance:2 uH
- Internal Resistance: 8 Ω
- Cartridge Mass: 5.7 Grams
- Cartridge Mass Inc Fixing Screws: 6.6 Grams
- Fixing Centre: 12.7 Millimetres /0.5 Inches
- Playing Weight: 1.5 – 2.0 Grams / 1.7 Grams nom.
