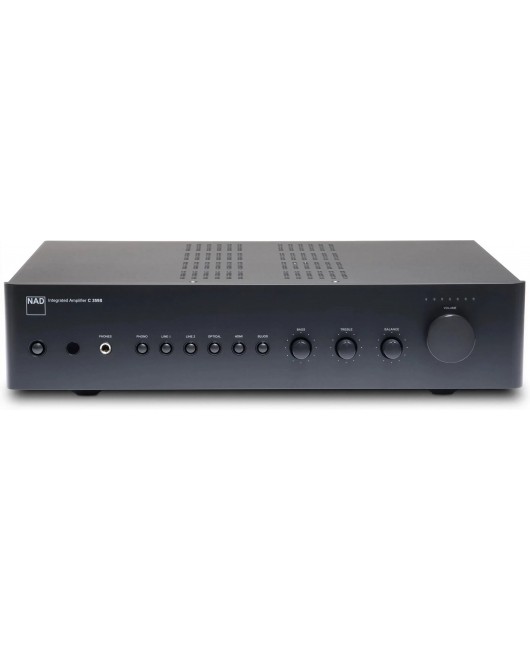

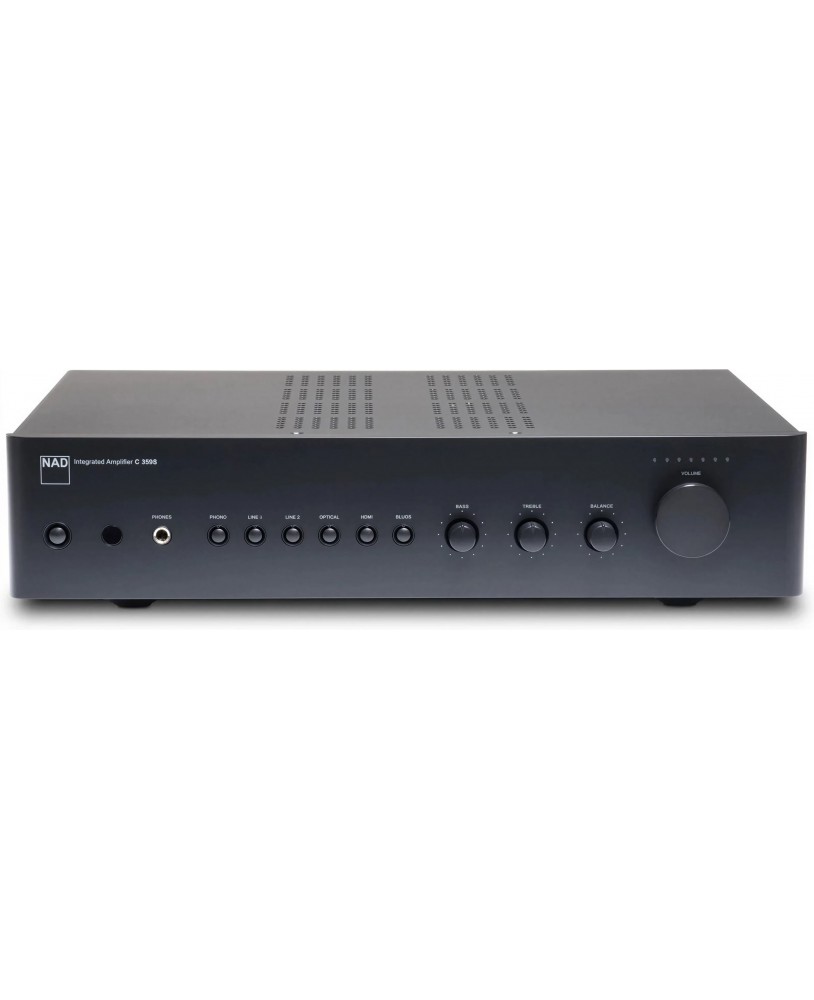

NAD - C359 S - Stereo Integrated Amplifier

NAD - C359 S - Stereo Integrated Amplifier
NAD - C359 S - Stereo Integrated Amplifier
NAD - C359 S - Stereo Integrated Amplifier

NAD - C359 S - Stereo Integrated Amplifier

0 reviews Write a review
  • Brand:NAD
  • Product Code:C359S
  • Availability:In Stock

  • $1,599.00

    Please call 416-251-1111 for more details and in-store offers.

The NAD C 359S brings the direct, tactile experience of a Classic Series amplifier into a thoroughly modern music system. Physical buttons and rotary controls provide the familiar, intuitive interaction that has long defined NAD integrated amplifiers, while Class AB amplification delivers clarity, power and musical detail. BluOS built-in adds high-resolution streaming and multi-room listening. HDMI eARC, Bluetooth aptX HD, phono and sophisticated subwoofer integration makes it easy to build a system around the music you enjoy. Familiar in character yet modern in capability, the C 359S puts music first.

  • 2 × 70 watts of continuous power into 8 ohms and 2 × 120 watts into 4 ohms
    Class AB amplification with a high-current, low-noise switch-mode power supply
  • BluOS built-in for high-resolution streaming and multi-room listening
  • HDMI eARC for direct connection to a compatible TV
  • Bluetooth aptX HD for high-quality wireless listening
  • Phono, analogue and optical inputs for flexible source connection
  • Sophisticated subwoofer integration with optional high-pass filtering
  • Dedicated headphone output for private listening
  • Physical buttons and rotary controls for direct, intuitive operation
  • IR remote control included



LINE IN, SUB-OUT (ANALOG BYPASS ON)

  • THD (20 Hz – 20 kHz): <0.005% at 4 V out
  • Signal-to-Noise Ratio: >90 dB (IHF; A-weighted, 500 mV out, unity gain)
  • Input Impedance (R and C): 28 kohms + 360 pF
  • Maximum Input Signal: >3.7 Vrms (0.1% THD)
  • Output Impedance: 440 ohms
  • Input Sensitivity: 160 mV (500 mV out, volume maximum)
  • Frequency Response: 20 Hz – 20 kHz (±0.3 dB)
  • Maximum Output Voltage: >5 V (0.1% THD)

LINE IN, HEADPHONE OUT

  • THD (20 Hz – 20 kHz): <0.005% at 1 V out
  • Signal-to-Noise Ratio: >110 dB (32 ohms load; A-weighted, 1 V out, unity gain)
  • Frequency Response: 20 Hz – 20 kHz (±0.3 dB)
  • Channel Separation: >60 dB at 1 kHz
  • Output Impedance: 5 ohms

GENERAL SPECIFICATIONS

LINE IN, SPEAKER OUT

  • Rated Output Power (8 ohms): 70 W (20 Hz – 80 kHz at rated THD, both channels driven)
  • Rated Output Power (4 ohms): 120 W (20 Hz – 80 kHz at rated THD, both channels driven)
  • THD (20 Hz – 20 kHz, 4 ohms): <0.03% (250 mW to 120 W)
  • THD (20 Hz – 20 kHz, 8 ohms): <0.03% (250 mW to 70 W)
  • Signal-to-Noise Ratio: >90 dB (A-weighted, 500 mV input, 1 W out at 8 ohms)
  • Clipping Power (4 ohms): >130 W (1 kHz, 0.3% THD)
  • Clipping Power (8 ohms): >75 W (1 kHz, 0.3% THD)
  • IHF Dynamic Power:
    • 8 ohms: 76 W
    • 4 ohms: 144 W
    • 2 ohms: 210 W
  • Peak Output Current: >20 A (1 ohm, 1 ms)
  • Damping Factor:
    • 210 (20 Hz – 1 kHz, 8 ohms)
    • 120 (10 kHz, 8 ohms)
  • Frequency Response: 20 Hz – 20 kHz (±0.3 dB)
  • Channel Separation:
    • 75 dB (1 kHz)
    • 70 dB (10 kHz)
  • Input Sensitivity (70 W into 8 ohms): 510 mV
  • Power Consumption (Standby Mode)*: 0.5 W
  • Maximum Transmit Power: 7 dBm ±2 dBm

PHONO INPUT, SPEAKER OUT

  • THD (20 Hz – 20 kHz): <0.05% at 70 W out, 8 ohms
  • Signal-to-Noise Ratio: >82 dB (10 mV in; A-weighted, 1 W out)
  • Input Impedance (R and C): 46 kohms / 100 pF
  • Input Sensitivity: 3.95 mV (60 W out, 1 kHz, 8 ohms, volume maximum)
  • Frequency Response: 20 Hz – 20 kHz (±0.3 dB)
  • Maximum Input Signal at 1 kHz: >63 mVrms (0.1% THD)

Note: The RIAA response is consistent with a pre-emphasis that is rolled off at 50 kHz by a second-order filter, such as used in Neumann cutting lathes.

OPTICAL INPUT, SPEAKER OUT

  • THD (20 Hz – 20 kHz):
    • <0.05% at 70 W out, 8 ohms
    • <0.05% at 120 W out, 4 ohms
  • Signal-to-Noise Ratio: >90 dB (-13 dBFS in, A-weighted, 1 W out)
  • Input Sensitivity (70 W, 8 ohms): -12 dBFS
  • Sample Rate: 44.1 kHz – 192 kHz
  • Channel Separation:
    • 75 dB (1 kHz)
    • 70 dB (10 kHz)
  • Frequency Response: 20 Hz – 20 kHz (±0.3 dB)

BLUOS SECTION

AUDIO

  • Supported Audio File Formats**: MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
  • Supported High-Resolution Audio Formats**: FLAC, MQA, WAV, AIFF
  • Sampling Rate: Up to 192 kHz
  • Bit Depth: 16 – 24 bit

CONNECTIVITY

  • Network Connectivity:
    • Gigabit Ethernet (RJ45)
    • Wi-Fi 5
  • Bluetooth Quality: aptX HD 5.0
  • Bluetooth Connectivity: Receive mode

USER INTERFACE

  • Supported Desktop Operating Systems**: Music playback from network shares on Microsoft Windows 10 or higher and macOS 10.3 or higher
  • Mobile Application: Free BluOS Controller App available for iOS, Android, Windows and macOS devices

SUPPORTED SERVICES**

  • Streaming Cloud Services: Amazon Music, Bugs, Custom Channels, Deezer, IDAGIO, KKBOX, Napster, Neil Young Archives, nugs.net, Pandora, Presto Music, Qobuz, QPlay, Qsic, SOUNDMACHINE, Spotify, TIDAL, Tunify
  • Free Internet Radio: Radio, Calm Radio, iHeartRadio, LiveOne, Radio Paradise, SiriusXM, TuneIn
  • Integration Partners: Control4, Crestron, ELAN, Lutron, Push, Roon, RTI, URC
  • Voice Control Integration: Skills and support for Amazon Alexa and Apple’s Siri with compatible devices and apps

DIMENSIONS AND WEIGHT

  • Gross Dimensions (W × H × D):
    • 435 × 100 × 400 mm
    • 17.25 × 4 × 15.25 inches
  • Net Weight: 8.9 kg (19.6 lbs)
  • Shipping Weight: 10.7 kg (23.6 lbs)
